Overview

Automatic Water Softener with Pre-filter

Borewell and tanker water often carries fine sand, silt and rust flakes. Left unchecked they settle on top of the resin bed, raise the pressure drop and wear the valve's seals. This system puts a 20-inch jumbo sediment housing ahead of the automatic softener, so the resin only ever sees clear water and the cartridge, not the softener, takes the dirt.

20-inch jumbo sediment housing ahead of the softener
Replaceable spun or pleated cartridge, changed during AMC visits
Runxin automatic valve with volume-based regeneration and BFT input
Pentair FRP vessel with INDION 220 Na resin
Protects the resin bed and valve seals from sand and silt

Technical data

Specifications 2 m³/hr

Model	QS-A-PF-2
Rated service flow	2 m³/hr (2,000 L/hr)
Pre-filter	20" Bigline jumbo housing, 1" ports
Softener vessel	Pentair FRP 12" × 48" (89 L), blue
Resin	INDION 220 Na, 50 L
Control valve	Runxin 63602 ORG automatic with BFT
Inlet / outlet	3/4" (20 NB)
Brine tank	100 L
Soft water per regeneration	≈ 12,500 L at 200 ppm hardness
Salt per regeneration	≈ 8 kg
Model	QS-A-PF-4
Rated service flow	4 m³/hr (4,000 L/hr)
Pre-filter	20" Bigline jumbo housing, 1" ports
Softener vessel	Pentair FRP 14" × 65" (150 L), blue
Resin	INDION 220 Na, 100 L
Control valve	Runxin 63604 ORG automatic with BFT + PRV
Inlet / outlet	1" (25 NB)
Brine tank	200 L
Soft water per regeneration	≈ 25,000 L at 200 ppm hardness
Salt per regeneration	≈ 16 kg
Model	QS-A-PF-6
Rated service flow	6 m³/hr (6,000 L/hr)
Pre-filter	20" Bigline jumbo housing, 1.5" ports
Softener vessel	Pentair FRP 16" × 65" (183 L), blue
Resin	INDION 220 Na, 125 L
Control valve	Runxin 63608 ORG automatic (valve rated 8 m³/hr)
Inlet / outlet	1.5" (40 NB)
Brine tank	200 L
Soft water per regeneration	≈ 31,250 L at 200 ppm hardness
Salt per regeneration	≈ 20 kg
Brand	Quantum AGI
Configuration	20" pre-filter + single vessel + brine tank
Pre-filter cartridge	Spun (melt-blown PP) or bag type
Regeneration	Automatic, volume-based (OBR), programmable start time
Working pressure	1.5 - 6 bar (0.15 - 0.6 MPa)
Max. water temperature	49 °C (standard polyester vessel)
Power	230 V AC through the valve's low-voltage adapter
Output basis	200 ppm hardness; ≈ 50 g CaCO₃ per litre of resin at 160 g salt/L

Valve data: ORG Engitech multiport valve list (Apr 2026). Housings: ORG Bigline range. Vessel: Pentair spec sheet. Resin: INDION 220 Na.

What’s included

20-inch Pre-filter Housing (ORG)
Automatic Softener Valve (ORG)
FRP Pressure Vessel (Quantum AGI)
INDION Softening Resin (ORG)
Brine (Salt) Tank (Quantum AGI)
Bypass line, pressure gauges and fittings
Installation, programming and a hardness check after commissioning

Good to know

Output per regeneration is quoted at 200 ppm hardness. Harder water means more frequent regeneration; your water report tells us exactly.

Softeners treat water for bathing, washing and appliances. For drinking water, pair with an RO purifier.

Side by side

Compare all capacities

Select a column to update the page.

Capacity
Model	QS-A-PF-2	QS-A-PF-4	QS-A-PF-6
Rated service flow	2 m³/hr (2,000 L/hr)	4 m³/hr (4,000 L/hr)	6 m³/hr (6,000 L/hr)
Pre-filter	20" Bigline jumbo housing, 1" ports	20" Bigline jumbo housing, 1" ports	20" Bigline jumbo housing, 1.5" ports
Softener vessel	Pentair FRP 12" × 48" (89 L), blue	Pentair FRP 14" × 65" (150 L), blue	Pentair FRP 16" × 65" (183 L), blue
Resin	INDION 220 Na, 50 L	INDION 220 Na, 100 L	INDION 220 Na, 125 L
Control valve	Runxin 63602 ORG automatic with BFT	Runxin 63604 ORG automatic with BFT + PRV	Runxin 63608 ORG automatic (valve rated 8 m³/hr)
Inlet / outlet	3/4" (20 NB)	1" (25 NB)	1.5" (40 NB)
Brine tank	100 L	200 L	200 L
Soft water per regeneration	≈ 12,500 L at 200 ppm hardness	≈ 25,000 L at 200 ppm hardness	≈ 31,250 L at 200 ppm hardness
Salt per regeneration	≈ 8 kg	≈ 16 kg	≈ 20 kg

Bill of materials

What’s inside this system

01

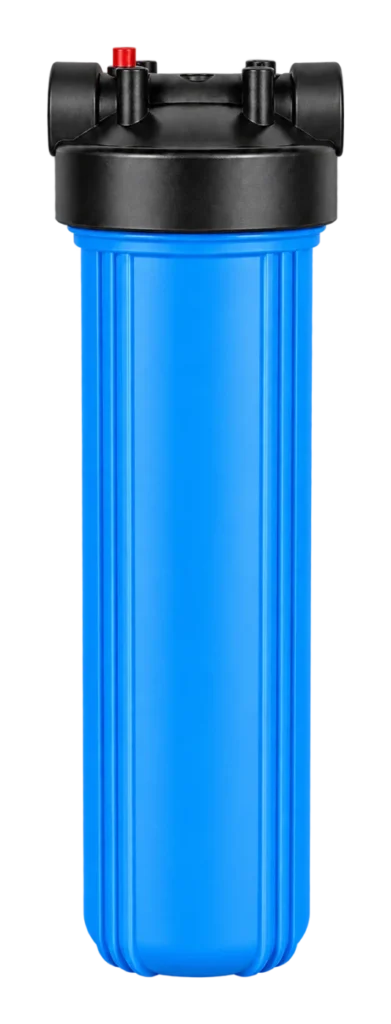

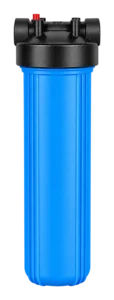

20-inch jumbo pre-filter housing with a blue bowl and black cap

ORG 20-inch Pre-filter Housing 3 housings · Blue Bigline, White Bigline, White Midline 02

ORG Automatic Softener Valve 3 capacities · 2–8 m³/hr 03

Quantum AGI blue FRP pressure vessels in five sizes

Quantum AGI FRP Pressure Vessel 7 sizes · 8" × 44"–16" × 65" 04

INDION 220 Na ion-exchange resin: 25 litre bag and a dish of golden resin beads

ORG INDION Softening Resin 3 grades · 220 Na, 222 Na NS, 225 Na F 05

Brine tanks in 100, 200, 500, 1,000 and 2,000 litre sizes

Quantum AGI Brine (Salt) Tank 5 capacities · 100 L–2,000 L

Technical quote

Ask about the Automatic Water Softener with Pre-filter

Tell us about your site and water source. We’ll call back with sizing advice and a written quotation, or book a free water test first.

1We confirm the right capacity for your flow and hardness.
2You get a written quotation with the full bill of materials.
3Our team installs, commissions and services it.
