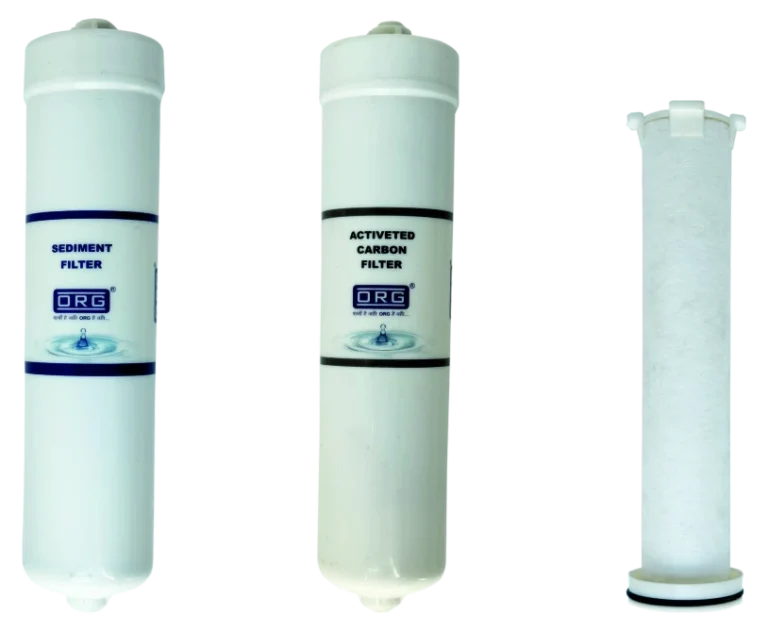

ORG Inline Welded Filter, Sediment or Carbon
Sealed inline cartridges: melt-blown sediment to stop sand and rust, or coconut-shell carbon for taste and odour.

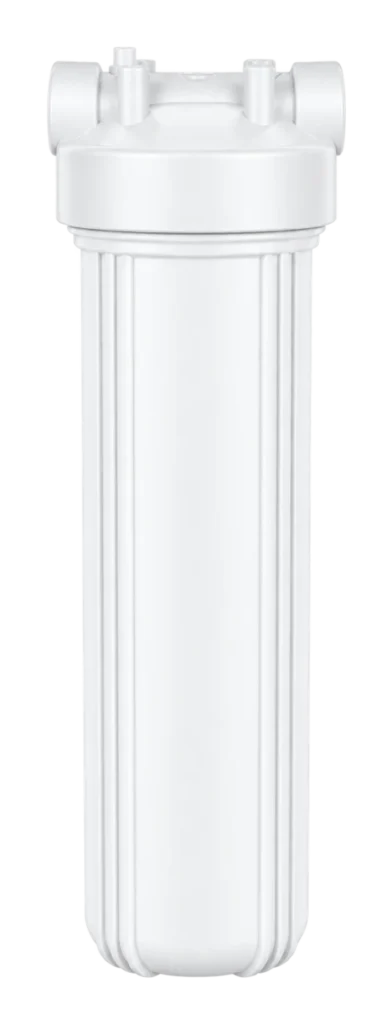

20-inch Pre-filter Housing
Jumbo 20-inch housings that stop sand, silt and rust before they reach the softener: blue Bigline, white Bigline and white Midline.
Sediment protection in front of softeners and filters
₹0
+ GST
MRP ₹0 incl. of all taxes
Price on request. Ask us for today’s price and availability.
Housing
Blue Bigline
Model PF-20-BL
- Ports
- 1" or 1.5"
- Cartridge
- 20" jumbo spun or bag type
- Best for
- Softener pre-filtration at 2 - 6 m³/hr
- Length
- 20 inch
- Ports
- 1" or 1.5" (brass-insert option)
- Cartridge
- 20" × 4" spun or bag type (bag-filter housing version available)
- Best for
- Softener and RO pre-filtration
- Length
- 20 inch
- Ports
- 1/2", 3/4" or 1"
- Cartridge
- 20" × 3" spun
- Best for
- Smaller softeners and point-of-entry lines
- Length
- 20 inch
Specifications from the manufacturer’s data. We confirm suitability for your water and setup before supply.
Overview
20-inch Pre-filter Housing
A softener's resin bed is not a dirt filter. Sand, silt and rust flakes that get into it pack the top of the bed, cut the flow and scratch the valve's seals. A 20-inch pre-filter housing with a spun or bag cartridge catches them first, and the cartridge is a cheap part to change at each service visit.
- 20-inch housings for whole-house flow
- Spun (melt-blown PP) or bag-type cartridges
- Pressure-release button on the cap for easy cartridge changes
- Bigline 1" and 1.5" ports; brass-insert option
- Opaque bowls stop algae growth inside the housing
Technical data
Specifications Blue Bigline
| Model | PF-20-BL |
|---|---|
| Housing | 20" Bigline jumbo, blue bowl, black cap |
| Ports | 1" or 1.5" |
| Cartridge | 20" jumbo spun or bag type |
| Best for | Softener pre-filtration at 2 - 6 m³/hr |
| Model | Bigline 20" × 4" |
| Housing | Bigline 20" × 4", opaque white |
| Ports | 1" or 1.5" (brass-insert option) |
| Cartridge | 20" × 4" spun or bag type (bag-filter housing version available) |
| Best for | Softener and RO pre-filtration |
| Model | Midline 20" × 3" |
| Housing | Midline 20" × 3", opaque white |
| Ports | 1/2", 3/4" or 1" |
| Cartridge | 20" × 3" spun |
| Best for | Smaller softeners and point-of-entry lines |
| Brand | ORG |
| Length | 20 inch |
| Cartridge types | Spun (melt-blown PP) or bag |
| Service | Cartridge changed during AMC visits or when the pressure drop rises |
ORG housing & canister range 2026; RFQ QAGI/RFQ/2026-27/001 (Bigline 20" housing, 1" fitting).
Good to know
Available as a spare, as an upgrade to an existing plant, or as part of a complete system we build.
Specifications are the manufacturer’s. We check compatibility with your vessel and valve before supply.
Side by side
Compare all housings
Select a column to update the page.
| Housing | |||
|---|---|---|---|
| Model | PF-20-BL | Bigline 20" × 4" | Midline 20" × 3" |
| Housing | 20" Bigline jumbo, blue bowl, black cap | Bigline 20" × 4", opaque white | Midline 20" × 3", opaque white |
| Ports | 1" or 1.5" | 1" or 1.5" (brass-insert option) | 1/2", 3/4" or 1" |
| Cartridge | 20" jumbo spun or bag type | 20" × 4" spun or bag type (bag-filter housing version available) | 20" × 3" spun |
| Best for | Softener pre-filtration at 2 - 6 m³/hr | Softener and RO pre-filtration | Smaller softeners and point-of-entry lines |
Where it goes
Used in our softening systems
Technical quote
Ask about the 20-inch Pre-filter Housing
Tell us about your site and water source. We’ll call back with sizing advice and a written quotation, or book a free water test first.
- 1We confirm the right housing for your flow and hardness.
- 2You get a written quotation with the full bill of materials.
- 3Our team installs, commissions and services it.
More in Filters & Housings
View all
ORG 11-inch Openable Filter, Sediment or Carbon
11-inch inline filter you open and refill: melt-blown sediment or coconut-shell carbon, with bottom or top-and-bottom connections.

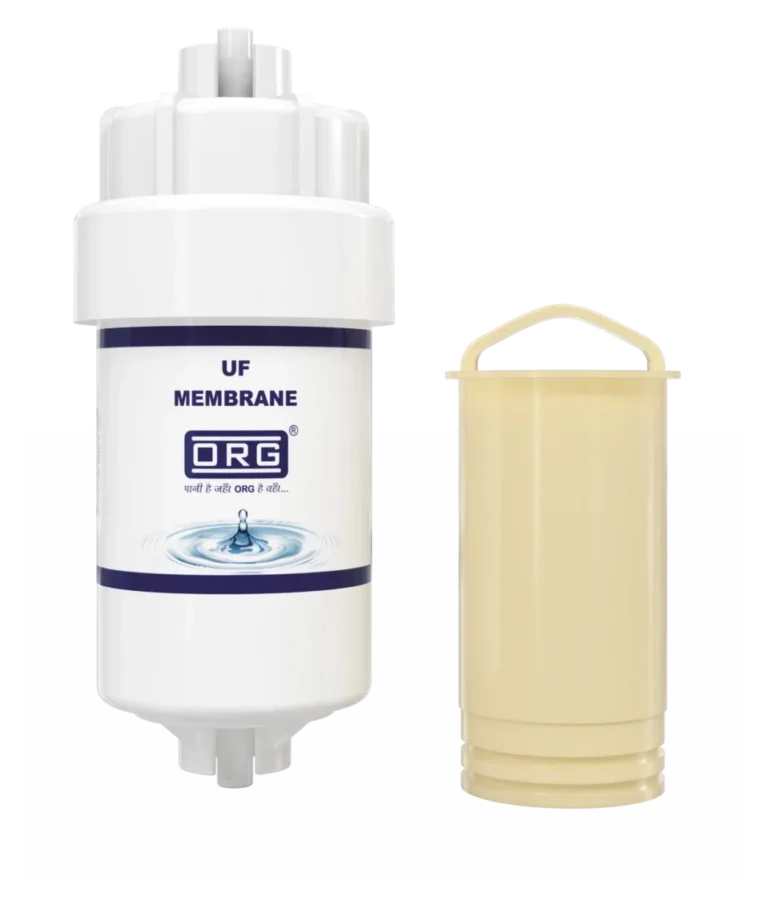

ORG UF Mini Filter (Openable)
