Automatic Water Softener with Pre-filter

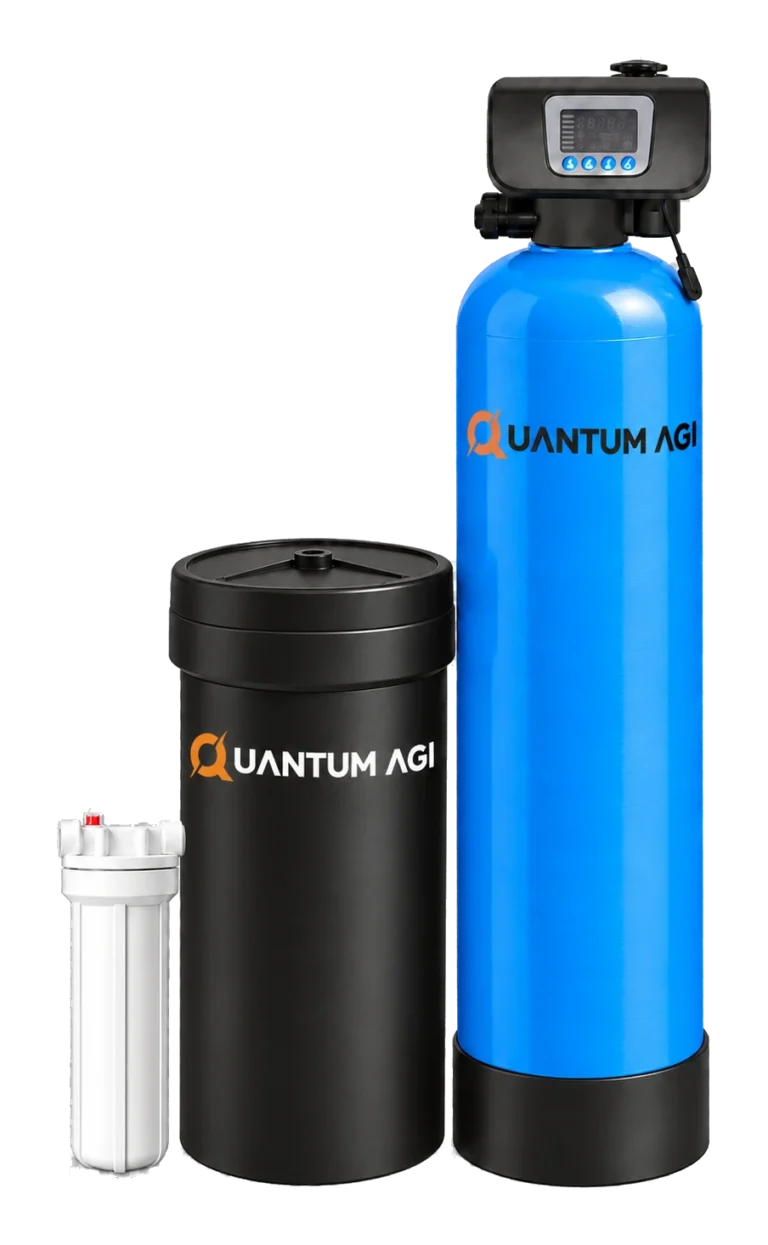

The automatic softener with a 20-inch sediment pre-filter in front, for borewell and tanker water that carries sand, silt or rust.
Automatic Water Softener
Single-vessel softener with a Runxin digital valve that regenerates by itself once the set volume of soft water has been used.
Homes, villas, hotels and commercial buildings on municipal supply
₹0
+ GST
MRP ₹0 incl. of all taxes
Price on request. Quoted with the bill of materials after your free water test.
Capacity
2 m³/hr
Model QS-A-2
Homes & villas up to ~5 bathrooms, small offices
Large villas, PGs, hostels, restaurants, small hotels
Hotels, hospitals, laundries, commercial kitchens
- Rated service flow
- 2 m³/hr (2,000 L/hr)
- Softener vessel
- Pentair FRP 12" × 48" (89 L), blue
- Resin
- INDION 220 Na, 50 L
- Control valve
- Runxin 63602 ORG automatic with BFT
- Rated service flow
- 4 m³/hr (4,000 L/hr)
- Softener vessel
- Pentair FRP 14" × 65" (150 L), blue
- Resin
- INDION 220 Na, 100 L
- Control valve
- Runxin 63604 ORG automatic with BFT + PRV
- Rated service flow
- 6 m³/hr (6,000 L/hr)
- Softener vessel
- Pentair FRP 16" × 65" (183 L), blue
- Resin
- INDION 220 Na, 125 L
- Control valve
- Runxin 63608 ORG automatic (valve rated 8 m³/hr)
Final sizing is confirmed from your free water test report.
Overview
Automatic Water Softener
Our standard whole-building softener: one blue Pentair FRP vessel filled with INDION 220 Na resin, a Runxin automatic control valve and a brine tank. The valve meters the soft water you use and starts regeneration on its own when the programmed volume is reached, usually set for the early hours. ORG's BFT input pauses the cycle if the supply fails midway, so salty rinse water never reaches your storage tank.
- Volume-based (OBR) automatic regeneration, programmable time of day
- BFT low-pressure-switch input pauses regeneration if the water supply stops

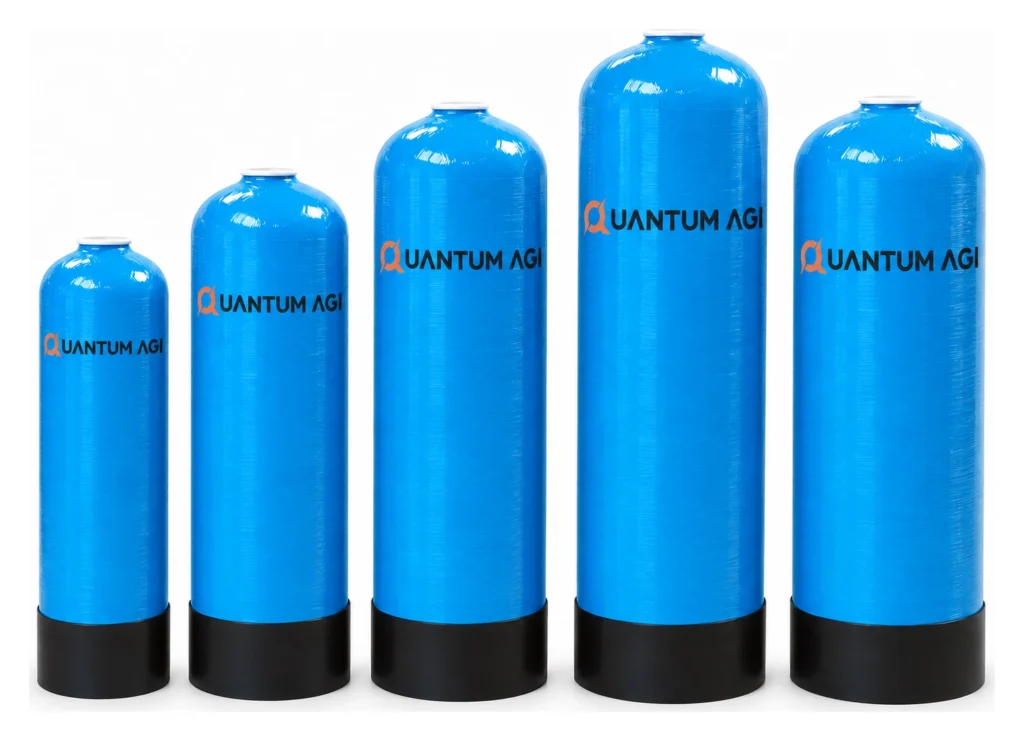

- Genuine Pentair structural FRP vessel, certified to NSF/ANSI 61

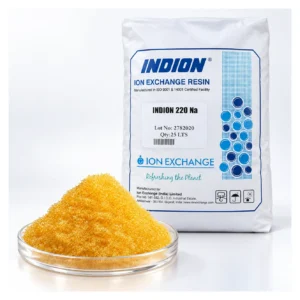

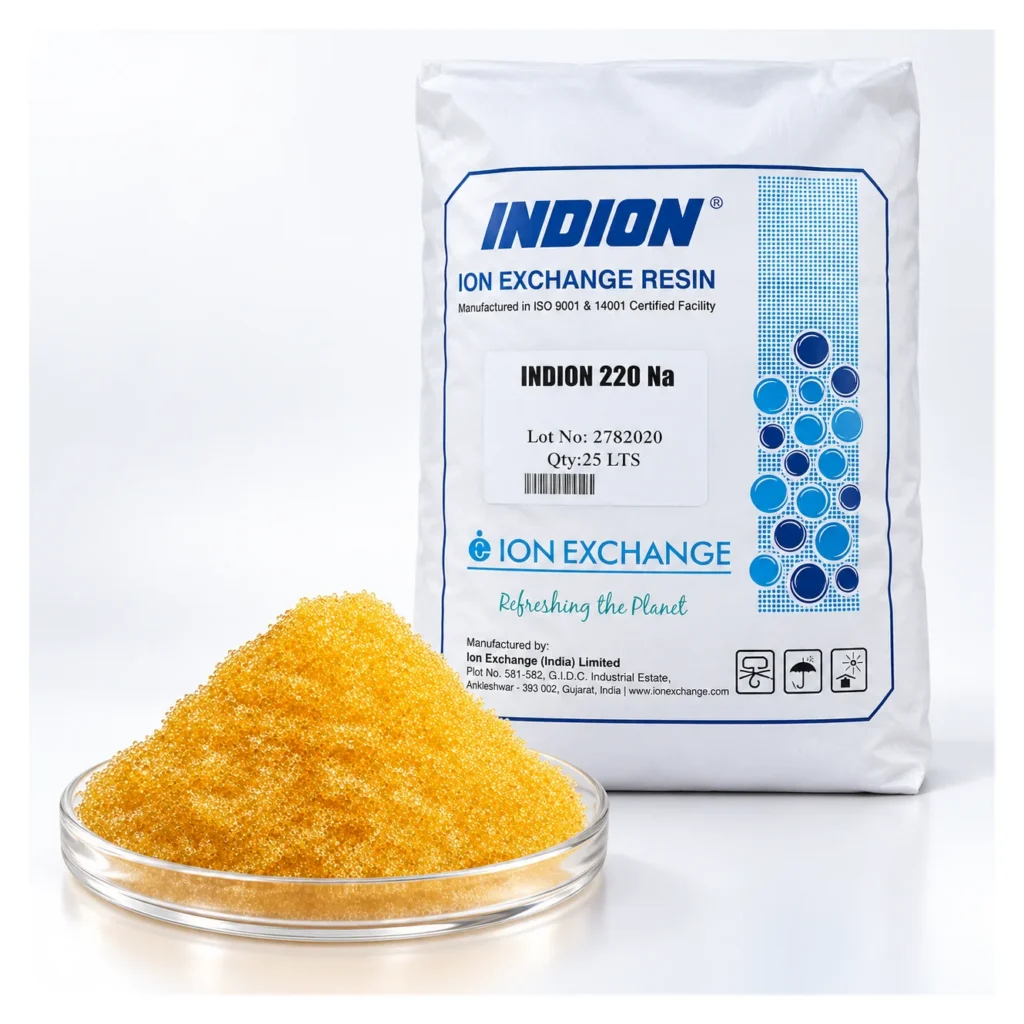

- INDION 220 Na strong-acid cation resin, 1.8 meq/ml total exchange capacity

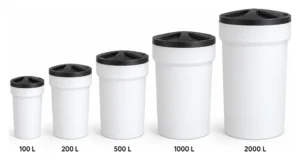

- Brine tank with brine valve, brine well and perforated salt plate
- Installed with a bypass line so water never stops during service
Technical data
Specifications 2 m³/hr
| Model | QS-A-2 |
|---|---|
| Rated service flow | 2 m³/hr (2,000 L/hr) |
| Softener vessel | Pentair FRP 12" × 48" (89 L), blue |
| Resin | INDION 220 Na, 50 L |
| Control valve | Runxin 63602 ORG automatic with BFT |
| Inlet / outlet | 3/4" (20 NB) |
| Brine tank | 100 L |
| Soft water per regeneration | ≈ 12,500 L at 200 ppm hardness |
| Salt per regeneration | ≈ 8 kg |
| Model | QS-A-4 |
| Rated service flow | 4 m³/hr (4,000 L/hr) |
| Softener vessel | Pentair FRP 14" × 65" (150 L), blue |
| Resin | INDION 220 Na, 100 L |
| Control valve | Runxin 63604 ORG automatic with BFT + PRV |
| Inlet / outlet | 1" (25 NB) |
| Brine tank | 200 L |
| Soft water per regeneration | ≈ 25,000 L at 200 ppm hardness |
| Salt per regeneration | ≈ 16 kg |
| Model | QS-A-6 |
| Rated service flow | 6 m³/hr (6,000 L/hr) |
| Softener vessel | Pentair FRP 16" × 65" (183 L), blue |
| Resin | INDION 220 Na, 125 L |
| Control valve | Runxin 63608 ORG automatic (valve rated 8 m³/hr) |
| Inlet / outlet | 1.5" (40 NB) |
| Brine tank | 200 L |
| Soft water per regeneration | ≈ 31,250 L at 200 ppm hardness |
| Salt per regeneration | ≈ 20 kg |
| Brand | Quantum AGI |
| Configuration | Single vessel + brine tank |
| Regeneration | Automatic, volume-based (OBR), programmable start time |
| Regeneration cycle | Backwash, brine & slow rinse, fast rinse, brine refill |
| Working pressure | 1.5 - 6 bar (0.15 - 0.6 MPa) |
| Max. water temperature | 49 °C (standard polyester vessel) |
| Power | 230 V AC through the valve's low-voltage adapter |
| Output basis | 200 ppm hardness; ≈ 50 g CaCO₃ per litre of resin at 160 g salt/L |
Valve data: ORG Engitech multiport valve list (Apr 2026). Vessel data: Pentair structural FRP spec sheet. Resin: INDION 220 Na data sheet.
What’s included

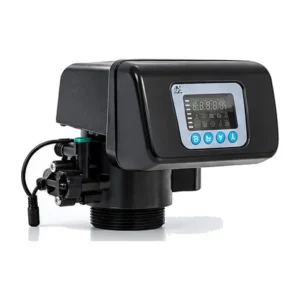

- Automatic Softener Valve (ORG)
- FRP Pressure Vessel (Quantum AGI)
- INDION Softening Resin (ORG)
- Brine (Salt) Tank (Quantum AGI)
- Bypass line, pressure gauges and fittings
- Installation, programming and a hardness check after commissioning
Good to know
Output per regeneration is quoted at 200 ppm hardness. Harder water means more frequent regeneration; your water report tells us exactly.
Softeners treat water for bathing, washing and appliances. For drinking water, pair with an RO purifier.
Side by side
Compare all capacities
Select a column to update the page.
| Capacity | |||
|---|---|---|---|
| Model | QS-A-2 | QS-A-4 | QS-A-6 |
| Rated service flow | 2 m³/hr (2,000 L/hr) | 4 m³/hr (4,000 L/hr) | 6 m³/hr (6,000 L/hr) |
| Softener vessel | Pentair FRP 12" × 48" (89 L), blue | Pentair FRP 14" × 65" (150 L), blue | Pentair FRP 16" × 65" (183 L), blue |
| Resin | INDION 220 Na, 50 L | INDION 220 Na, 100 L | INDION 220 Na, 125 L |
| Control valve | Runxin 63602 ORG automatic with BFT | Runxin 63604 ORG automatic with BFT + PRV | Runxin 63608 ORG automatic (valve rated 8 m³/hr) |
| Inlet / outlet | 3/4" (20 NB) | 1" (25 NB) | 1.5" (40 NB) |
| Brine tank | 100 L | 200 L | 200 L |
| Soft water per regeneration | ≈ 12,500 L at 200 ppm hardness | ≈ 25,000 L at 200 ppm hardness | ≈ 31,250 L at 200 ppm hardness |
| Salt per regeneration | ≈ 8 kg | ≈ 16 kg | ≈ 20 kg |
Technical quote
Ask about the Automatic Water Softener
Tell us about your site and water source. We’ll call back with sizing advice and a written quotation, or book a free water test first.
- 1We confirm the right capacity for your flow and hardness.
- 2You get a written quotation with the full bill of materials.
- 3Our team installs, commissions and services it.
More in Water Softeners
View all

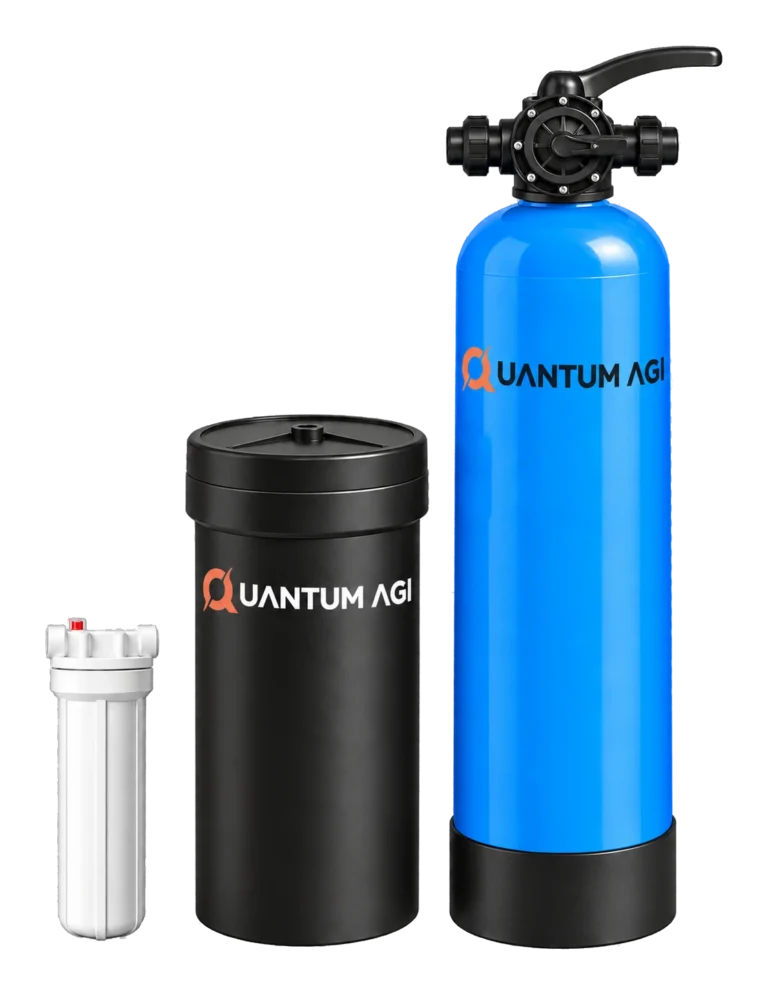

Manual Water Softener with Pre-filter
A softener run by hand through a Runxin manual multiport valve, with a 20-inch sediment pre-filter. Needs no electricity.

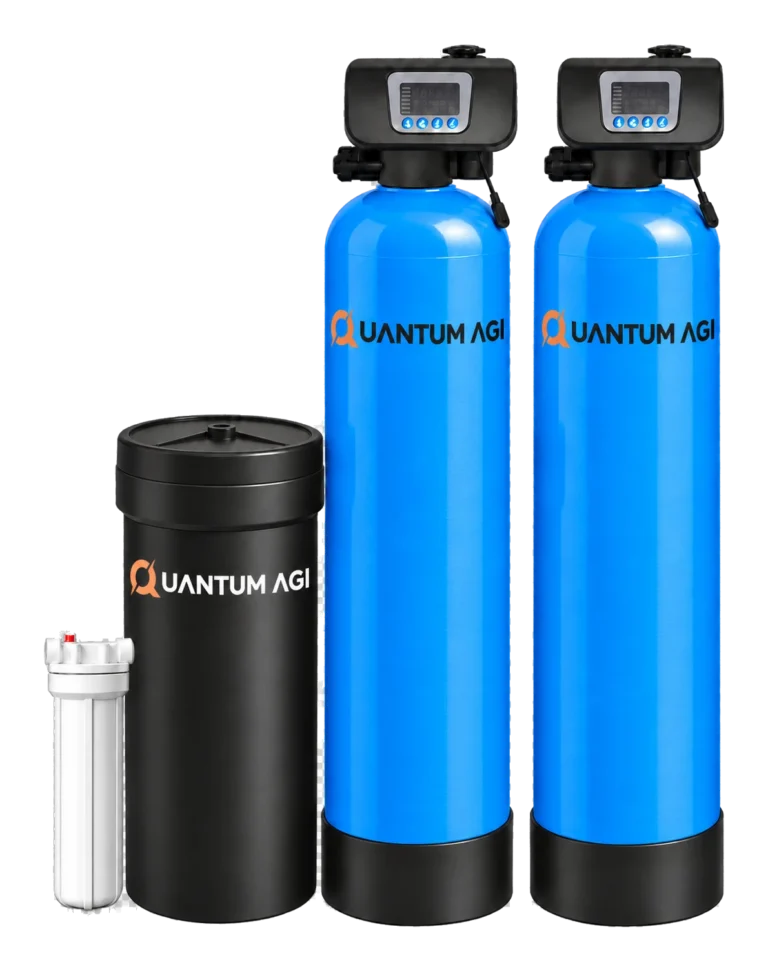

Twin-Vessel Filter + Softener, Automatic
A multi-grade sand filter vessel and a softener vessel, each on its own Runxin automatic valve, sharing one brine tank.

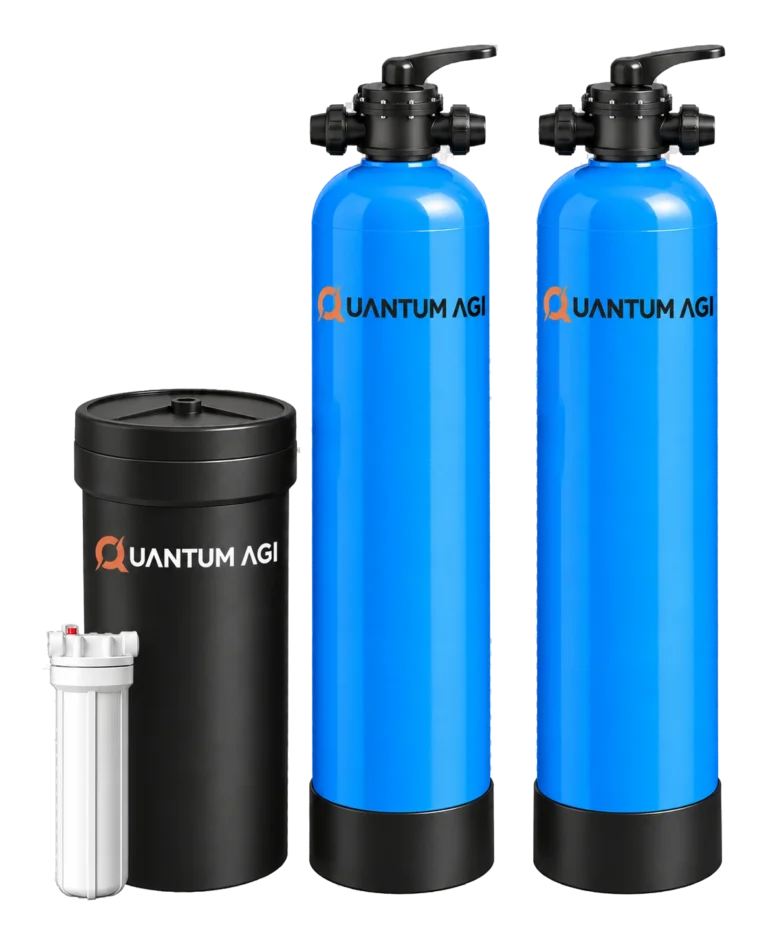

Twin-Vessel Filter + Softener, Manual
