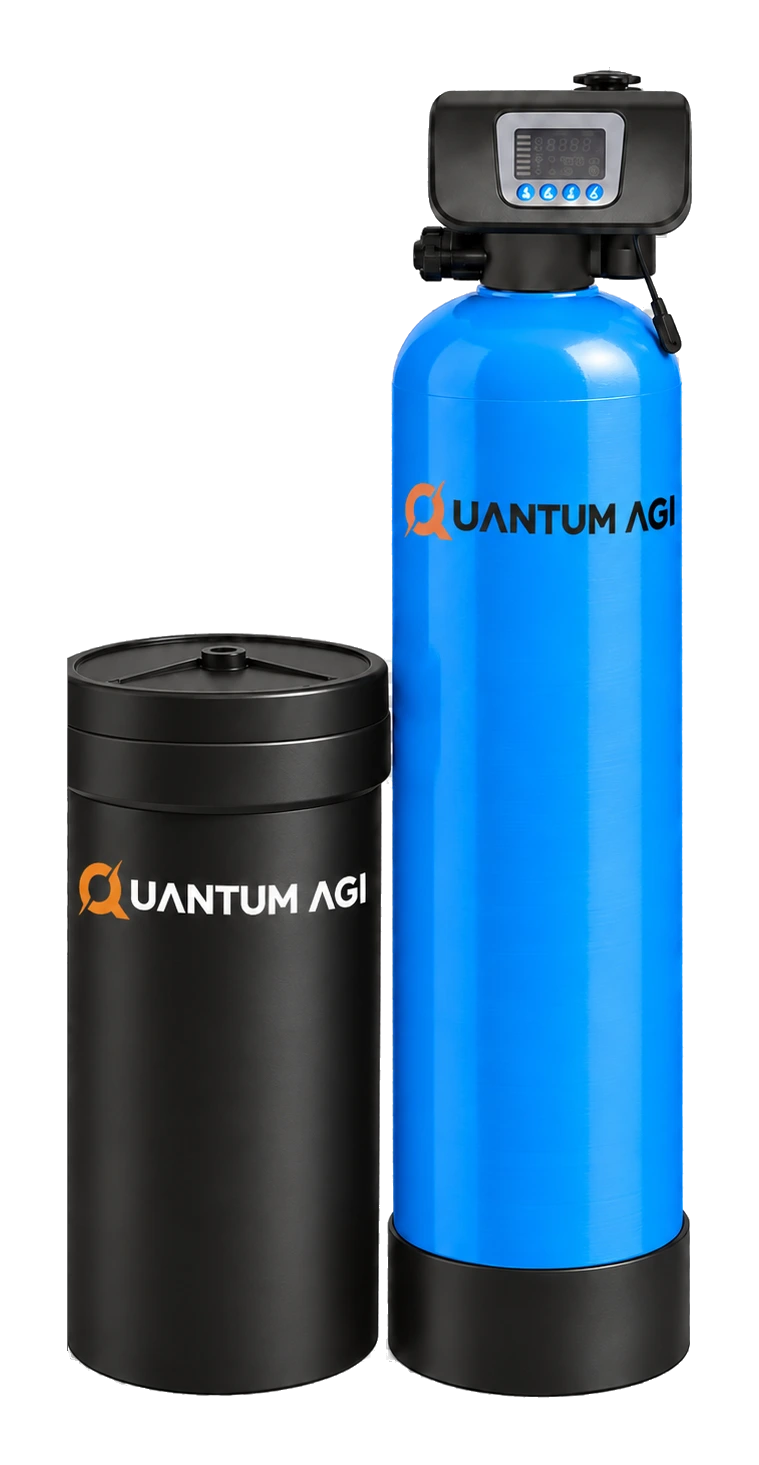

Automatic Water Softener
Single-vessel softener with a Runxin digital valve that regenerates by itself once the set volume of soft water has been used.
Twin-Vessel Filter + Softener, Automatic
A multi-grade sand filter vessel and a softener vessel, each on its own Runxin automatic valve, sharing one brine tank.
Turbid borewell or tanker water that needs clarifying before softening
₹0
+ GST
MRP ₹0 incl. of all taxes
Price on request. Quoted with the bill of materials after your free water test.
Capacity
2 m³/hr
Model QT-A-2
Homes, villas, small societies
Societies, hostels, hotels
Hotels, hospitals, light industry
- Rated service flow
- 2 m³/hr (2,000 L/hr)
- Filter vessel
- Pentair FRP 12" × 48", graded gravel + sand
- Filter valve
- Runxin 55602 automatic
- Softener vessel
- Pentair FRP 12" × 48" (89 L), blue
- Rated service flow
- 4 m³/hr (4,000 L/hr)
- Filter vessel
- Pentair FRP 14" × 65", graded gravel + sand
- Filter valve
- Runxin 55604 automatic
- Softener vessel
- Pentair FRP 14" × 65" (150 L), blue
- Rated service flow
- 6 m³/hr (6,000 L/hr)
- Filter vessel
- Pentair FRP 16" × 65", graded gravel + sand
- Filter valve
- Runxin 53608 automatic (valve rated 8 m³/hr)
- Softener vessel
- Pentair FRP 16" × 65" (183 L), blue
Final sizing is confirmed from your free water test report.
Overview
Twin-Vessel Filter + Softener, Automatic
When the raw water is cloudy, softening alone is not enough. The first vessel is a pressure sand filter: graded gravel, coarse sand and fine sand trap suspended solids and turbidity, and its Runxin valve backwashes the bed automatically. The clarified water then passes into the softener vessel, which regenerates with brine on its own schedule. The 556-series filter valves are the ones ORG specifies for sand filters working alongside a softener.
- Stage 1: pressure sand filter with graded gravel, coarse and fine sand
- Stage 2: ion-exchange softener with INDION 220 Na resin
- Two Runxin automatic valves: filter backwash and softener regeneration
- Filter valves from the 556 series, made for sand filter + softener pairs
- Identical Pentair FRP vessels for a tidy, symmetrical install
Technical data
Specifications 2 m³/hr
| Model | QT-A-2 |
|---|---|
| Rated service flow | 2 m³/hr (2,000 L/hr) |
| Filter vessel | Pentair FRP 12" × 48", graded gravel + sand |
| Filter valve | Runxin 55602 automatic |
| Softener vessel | Pentair FRP 12" × 48" (89 L), blue |
| Resin | INDION 220 Na, 50 L |
| Softener valve | Runxin 63602 ORG automatic with BFT |
| Inlet / outlet | 3/4" (20 NB) |
| Brine tank | 100 L |
| Soft water per regeneration | ≈ 12,500 L at 200 ppm hardness |
| Salt per regeneration | ≈ 8 kg |
| Model | QT-A-4 |
| Rated service flow | 4 m³/hr (4,000 L/hr) |
| Filter vessel | Pentair FRP 14" × 65", graded gravel + sand |
| Filter valve | Runxin 55604 automatic |
| Softener vessel | Pentair FRP 14" × 65" (150 L), blue |
| Resin | INDION 220 Na, 100 L |
| Softener valve | Runxin 63604 ORG automatic with BFT + PRV |
| Inlet / outlet | 1" (25 NB) |
| Brine tank | 200 L |
| Soft water per regeneration | ≈ 25,000 L at 200 ppm hardness |
| Salt per regeneration | ≈ 16 kg |
| Model | QT-A-6 |
| Rated service flow | 6 m³/hr (6,000 L/hr) |
| Filter vessel | Pentair FRP 16" × 65", graded gravel + sand |
| Filter valve | Runxin 53608 automatic (valve rated 8 m³/hr) |
| Softener vessel | Pentair FRP 16" × 65" (183 L), blue |
| Resin | INDION 220 Na, 125 L |
| Softener valve | Runxin 63608 ORG automatic (valve rated 8 m³/hr) |
| Inlet / outlet | 1.5" (40 NB) |
| Brine tank | 200 L |
| Soft water per regeneration | ≈ 31,250 L at 200 ppm hardness |
| Salt per regeneration | ≈ 20 kg |
| Brand | Quantum AGI |
| Configuration | Filter vessel + softener vessel + brine tank |
| Filter media | Graded gravel, coarse sand and fine sand (activated carbon on request) |
| Regeneration | Automatic: filter backwash + softener regeneration on separate valves |
| Working pressure | 1.5 - 6 bar (0.15 - 0.6 MPa) |
| Max. water temperature | 49 °C (standard polyester vessels) |
| Power | 230 V AC through each valve's low-voltage adapter |
| Output basis | 200 ppm hardness; ≈ 50 g CaCO₃ per litre of resin at 160 g salt/L |
Valve data: ORG Engitech multiport valve list (Apr 2026). Vessel: Pentair spec sheet. Resin: INDION 220 Na.
What’s included

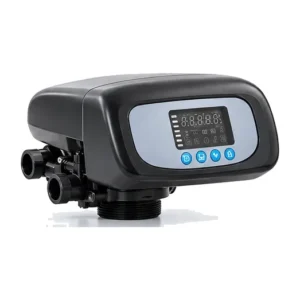

- Automatic Filter Valve (ORG)
- Automatic Softener Valve (ORG)
- FRP Pressure Vessel (Quantum AGI)
- INDION Softening Resin (ORG)
- Brine (Salt) Tank (Quantum AGI)
- Bypass line, pressure gauges and fittings
- Installation, programming and a hardness check after commissioning
Good to know
Output per regeneration is quoted at 200 ppm hardness. Harder water means more frequent regeneration; your water report tells us exactly.
Softeners treat water for bathing, washing and appliances. For drinking water, pair with an RO purifier.
Side by side
Compare all capacities
Select a column to update the page.
| Capacity | |||
|---|---|---|---|
| Model | QT-A-2 | QT-A-4 | QT-A-6 |
| Rated service flow | 2 m³/hr (2,000 L/hr) | 4 m³/hr (4,000 L/hr) | 6 m³/hr (6,000 L/hr) |
| Filter vessel | Pentair FRP 12" × 48", graded gravel + sand | Pentair FRP 14" × 65", graded gravel + sand | Pentair FRP 16" × 65", graded gravel + sand |
| Filter valve | Runxin 55602 automatic | Runxin 55604 automatic | Runxin 53608 automatic (valve rated 8 m³/hr) |
| Softener vessel | Pentair FRP 12" × 48" (89 L), blue | Pentair FRP 14" × 65" (150 L), blue | Pentair FRP 16" × 65" (183 L), blue |
| Resin | INDION 220 Na, 50 L | INDION 220 Na, 100 L | INDION 220 Na, 125 L |
| Softener valve | Runxin 63602 ORG automatic with BFT | Runxin 63604 ORG automatic with BFT + PRV | Runxin 63608 ORG automatic (valve rated 8 m³/hr) |
| Inlet / outlet | 3/4" (20 NB) | 1" (25 NB) | 1.5" (40 NB) |
| Brine tank | 100 L | 200 L | 200 L |
| Soft water per regeneration | ≈ 12,500 L at 200 ppm hardness | ≈ 25,000 L at 200 ppm hardness | ≈ 31,250 L at 200 ppm hardness |
| Salt per regeneration | ≈ 8 kg | ≈ 16 kg | ≈ 20 kg |
Bill of materials
What’s inside this system
01
ORG
Automatic Filter Valve
3 capacities · 2–8 m³/hr
02
ORG
Automatic Softener Valve
3 capacities · 2–8 m³/hr
03
Quantum AGI
FRP Pressure Vessel
7 sizes · 8" × 44"–16" × 65"
04
ORG
INDION Softening Resin
3 grades · 220 Na, 222 Na NS, 225 Na F
05
Quantum AGI
Brine (Salt) Tank
5 capacities · 100 L–2,000 L
ORG
Automatic Filter Valve
3 capacities · 2–8 m³/hr
02
ORG
Automatic Softener Valve
3 capacities · 2–8 m³/hr
03
Quantum AGI
FRP Pressure Vessel
7 sizes · 8" × 44"–16" × 65"
04
ORG
INDION Softening Resin
3 grades · 220 Na, 222 Na NS, 225 Na F
05
Quantum AGI
Brine (Salt) Tank
5 capacities · 100 L–2,000 L
Technical quote
Ask about the Twin-Vessel Filter + Softener, Automatic
Tell us about your site and water source. We’ll call back with sizing advice and a written quotation, or book a free water test first.
- 1We confirm the right capacity for your flow and hardness.
- 2You get a written quotation with the full bill of materials.
- 3Our team installs, commissions and services it.
