Brine (Salt) Tank
Brine tanks from 100 to 2,000 litres, supplied complete with brine valve, brine well and perforated salt plate.
Softeners from small homes to industrial plants
MRP ₹0 incl. of all taxes
Price on request. Ask us for today’s price and availability.
- Capacity
- 100 L
- Pairs with
- Softeners up to 2 m³/hr (12" × 48" vessel)
- Supplied with
- Brine valve (float), brine well, perforated salt plate
- Brine strength
- Saturated, ≈ 26 % NaCl
- Capacity
- 200 L
- Pairs with
- 4 - 6 m³/hr softeners (14" and 16" vessels)
- Supplied with
- Brine valve (float), brine well, perforated salt plate
- Brine strength
- Saturated, ≈ 26 % NaCl
- Capacity
- 500 L
- Pairs with
- Large commercial and twin-softener plants
- Supplied with
- Brine valve (float), brine well, perforated salt plate
- Brine strength
- Saturated, ≈ 26 % NaCl
- Capacity
- 1,000 L
- Pairs with
- Industrial softening plants
- Supplied with
- Brine valve (float), brine well, perforated salt plate
- Brine strength
- Saturated, ≈ 26 % NaCl
- Capacity
- 2,000 L
- Pairs with
- Large industrial and community plants
- Supplied with
- Brine valve (float), brine well, perforated salt plate
- Brine strength
- Saturated, ≈ 26 % NaCl
Final sizing is confirmed from your free water test report.
Overview
Brine (Salt) Tank
The brine tank stores the salt and makes the saturated brine the softener draws during regeneration. Water sits on the salt, dissolves it to about 26 % sodium chloride, and the valve's injector pulls exactly what it needs. The brine valve and float stop the tank overfilling, the brine well keeps the suction line clear, and the perforated plate holds the salt above the brine pick-up.
- Complete with brine valve, brine well and perforated salt plate

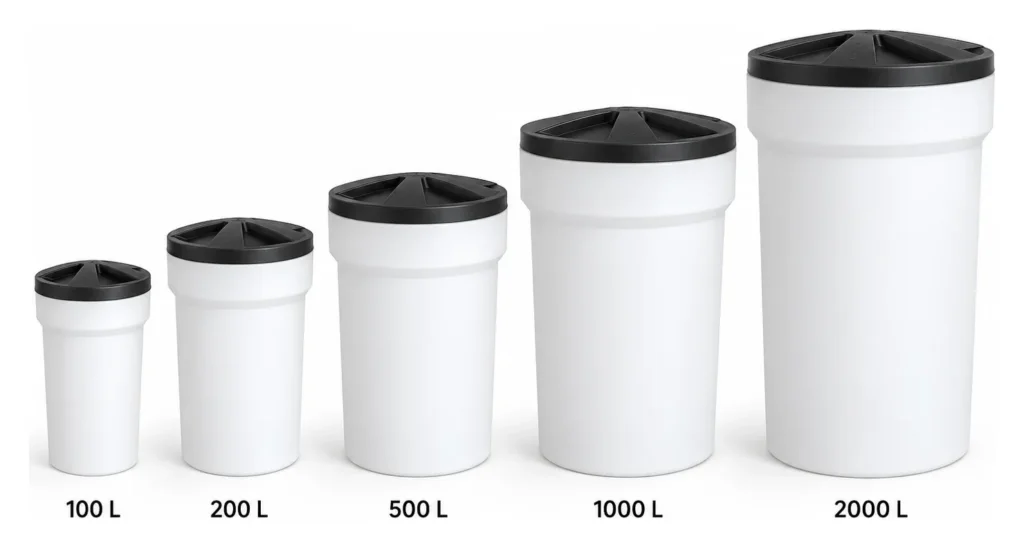

- Five sizes: 100, 200, 500, 1,000 and 2,000 L
- White body with black lid
- Works with Runxin manual and automatic softener valves
- Use refined salt to IS 797 Grade 1 (NaCl ≥ 99.5 %)
Technical data
Specifications 100 L
| Model | BT-100 |
|---|---|
| Capacity | 100 L |
| Pairs with | Softeners up to 2 m³/hr (12" × 48" vessel) |
| Model | BT-200 |
| Capacity | 200 L |
| Pairs with | 4 - 6 m³/hr softeners (14" and 16" vessels) |
| Model | BT-500 |
| Capacity | 500 L |
| Pairs with | Large commercial and twin-softener plants |
| Model | BT-1000 |
| Capacity | 1,000 L |
| Pairs with | Industrial softening plants |
| Model | BT-2000 |
| Capacity | 2,000 L |
| Pairs with | Large industrial and community plants |
| Brand | Quantum AGI |
| Supplied with | Brine valve (float), brine well, perforated salt plate |
| Brine strength | Saturated, ≈ 26 % NaCl |
| Recommended salt | IS 797 Grade 1: NaCl ≥ 99.5 %, insolubles ≤ 0.05 %, iron ≤ 10 ppm |
| Finish | White body, black lid |
Brine tank range and accessories: ORG catalogue 2026. Salt quality: INDION specification of regenerants (IS 797:1982 Grade 1).
Good to know
Available as a spare, as an upgrade to an existing plant, or as part of a complete system we build.
Specifications are the manufacturer’s. We check compatibility with your vessel and valve before supply.
Side by side
Compare all capacities
Select a column to update the page.
| Capacity | |||||
|---|---|---|---|---|---|
| Model | BT-100 | BT-200 | BT-500 | BT-1000 | BT-2000 |
| Capacity | 100 L | 200 L | 500 L | 1,000 L | 2,000 L |
| Pairs with | Softeners up to 2 m³/hr (12" × 48" vessel) | 4 - 6 m³/hr softeners (14" and 16" vessels) | Large commercial and twin-softener plants | Industrial softening plants | Large industrial and community plants |
