ORG Flow Restrictors (FR)
Flow restrictors for the RO reject line: fixed 200 to 800 ml/min, adjustable, or the high-recovery FR that lifts recovery to 40 %.
Reject line of domestic RO purifiers
₹60
+ GST
MRP ₹199 incl. of all taxes
Price on request. Ask us for today’s price and availability.
Type
FR 200
Model FR 200
- Type
- Fixed flow restrictor
- Rated flow
- 200 ml/min
- Inside
- Medical-grade Teflon tube
- Position
- Reject (drain) line of the RO membrane
- Type
- Fixed flow restrictor
- Rated flow
- 450 ml/min
- Inside
- Medical-grade Teflon tube
- Position
- Reject (drain) line of the RO membrane
- Type
- Fixed flow restrictor
- Rated flow
- 700 ml/min
- Inside
- Medical-grade Teflon tube
- Position
- Reject (drain) line of the RO membrane
- Type
- Fixed flow restrictor
- Rated flow
- 800 ml/min
- Inside
- Medical-grade Teflon tube
- Position
- Reject (drain) line of the RO membrane

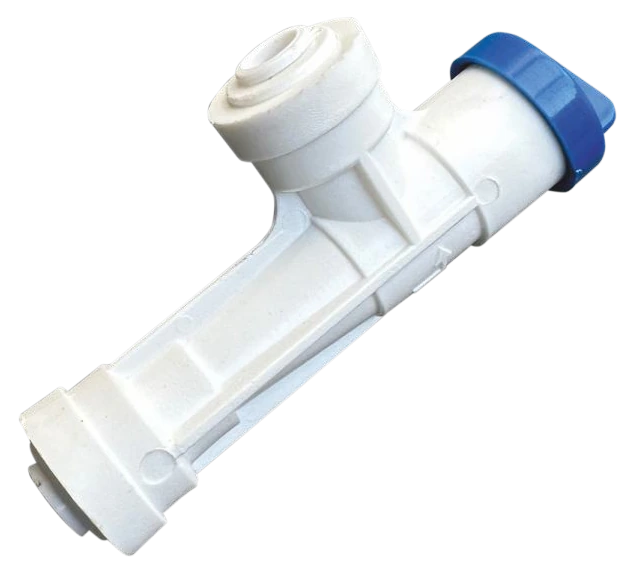

- Type
- Adjustable flow restrictor
- Rated flow
- Set on site, highly accurate
- Connection
- 1/4" quick connection
- Position
- Reject (drain) line of the RO membrane
- Type

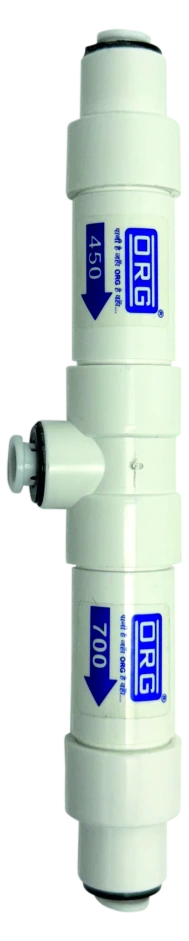

- FR for high-recovery RO systems
- Rated flow
- Lifts recovery to about 40 %
- Fitting
- Replaces the existing FR in the reject line
- Position
- Reject (drain) line of the RO membrane
Specifications from the manufacturer’s data. We confirm suitability for your water and setup before supply. Prices exclude GST; delivery and installation are quoted separately.
Overview
ORG Flow Restrictors (FR)
The flow restrictor sets how much water an RO purifier sends to drain, which sets the pressure on the membrane and the share of water recovered. ORG's fixed FRs use a medical-grade Teflon tube for long life with high accuracy, in 200, 450, 700 and 800 ml/min ratings. The adjustable FR lets the technician set the flow precisely, and the high-recovery FR lets an existing RO reach about 40 % recovery just by changing the FR.
- Fixed FR made with a medical-grade Teflon tube
- Long life with high accuracy
- Fixed ratings: 200, 450, 700 and 800 ml/min
- Adjustable FR: highly accurate flow control, 1/4" quick connection
- High-recovery FR: about 40 % recovery from an existing RO
Technical data
Specifications FR 200
| Model | FR 200 |
|---|---|
| Type | Fixed flow restrictor |
| Rated flow | 200 ml/min |
| Inside | Medical-grade Teflon tube |
| Model | FR 450 |
| Type | Fixed flow restrictor |
| Rated flow | 450 ml/min |
| Inside | Medical-grade Teflon tube |
| Model | FR 700 |
| Type | Fixed flow restrictor |
| Rated flow | 700 ml/min |
| Inside | Medical-grade Teflon tube |
| Model | FR 800 |
| Type | Fixed flow restrictor |
| Rated flow | 800 ml/min |
| Inside | Medical-grade Teflon tube |
| Model | Adjustable FR |
| Type | Adjustable flow restrictor |
| Rated flow | Set on site, highly accurate |
| Connection | 1/4" quick connection |
| Model | FR for high-recovery RO |
| Type | FR for high-recovery RO systems |
| Rated flow | Lifts recovery to about 40 % |
| Fitting | Replaces the existing FR in the reject line |
| Brand | ORG |
| Position | Reject (drain) line of the RO membrane |
| Accuracy | Long life with high accuracy |

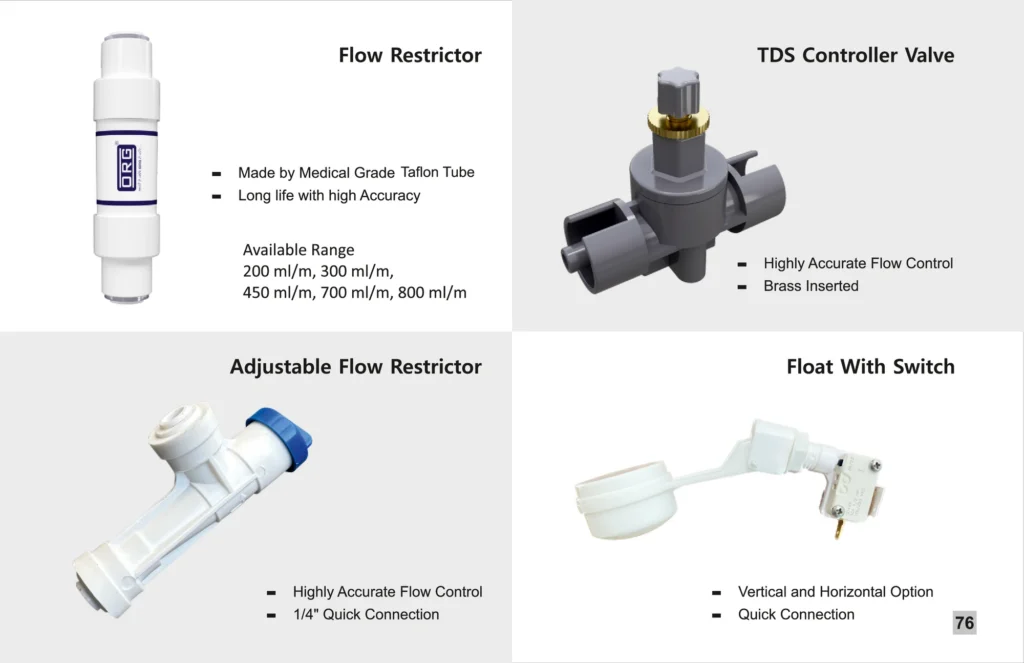

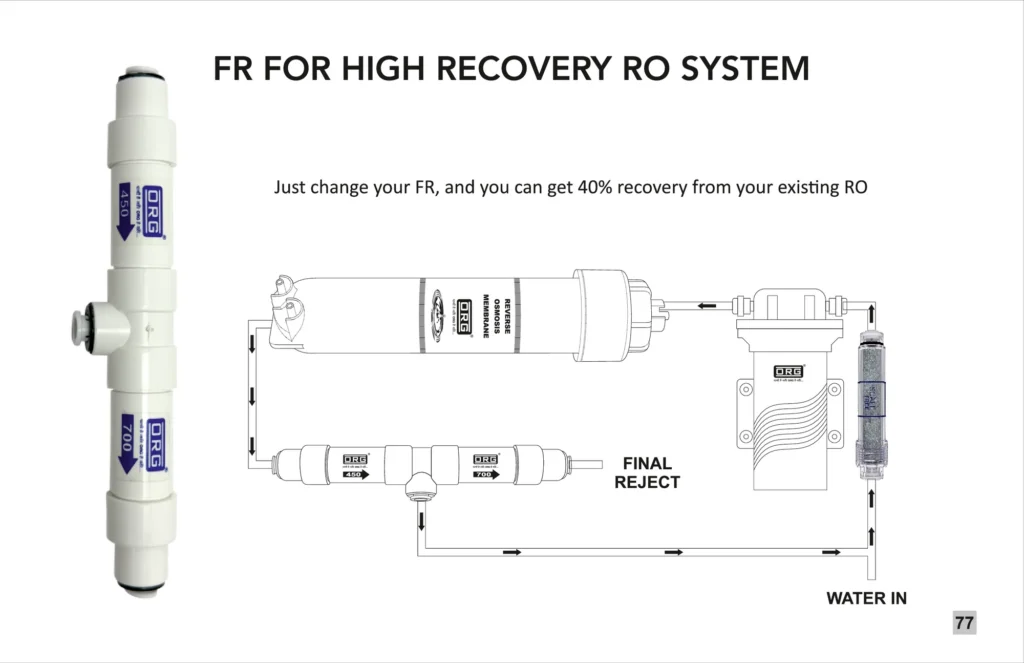

ORG catalogue (pages 76-77). Models and MRP: ORG price list 2026.
Good to know
Specifications are the manufacturer’s. We confirm suitability for your water and setup before supply.
Our prices exclude GST. MRP is the manufacturer’s maximum retail price, inclusive of all taxes.
Side by side
Compare all types
Select a row to update the page. Prices + GST.
| Type | Model | Type | Rated flow | Inside | Connection | Fitting | MRP | Our price |
|---|---|---|---|---|---|---|---|---|
| FR 200 | Fixed flow restrictor | 200 ml/min | Medical-grade Teflon tube | — | — | ₹60 | ||
| FR 450 | Fixed flow restrictor | 450 ml/min | Medical-grade Teflon tube | — | — | ₹60 | ||
| FR 700 | Fixed flow restrictor | 700 ml/min | Medical-grade Teflon tube | — | — | ₹60 | ||
| FR 800 | Fixed flow restrictor | 800 ml/min | Medical-grade Teflon tube | — | — | ₹60 | ||
| Adjustable FR | Adjustable flow restrictor | Set on site, highly accurate | — | 1/4" quick connection | — | ₹68 | ||
| FR for high-recovery RO | FR for high-recovery RO systems | Lifts recovery to about 40 % | — | — | Replaces the existing FR in the reject line | ₹120 |
Order enquiry
Ask about the ORG Flow Restrictors (FR)
Tell us the type and quantity you need. We’ll confirm availability, delivery and fitting, and send a written quotation with GST.
- 1We confirm the right type for your water and setup.
- 2You get a written quotation with GST, delivery and fitting.
- 3We supply it, and our technician fits it if you need.
